NILHO 900 PUR

Description

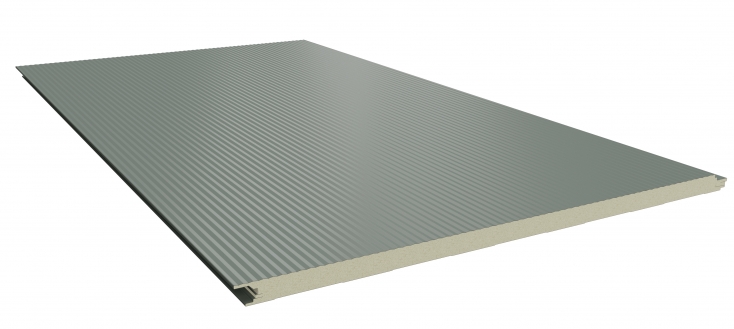

Europerfil NILHO 900 PUR micro nerved facade sandwich panel. CE marking (EN 14509). Fire reaction Euroclase B-s2,d0. Tongue and groove sealed system with hidden fixture. Thicknesses from 40 to 100 mm, width 900 mm (other widths: 600, 1000 and 1100mm); comprising exterior and interior shell in galvanised pre-lacquered steel with thicknesses of 0.75mm (ó 0,7mm)/ 0.5mm (EN 10169) in standard Europerfil colours and coatings; rigid PUR (polyurethane CFC-free) foam core. CE marking (EN 14509). The panel is supplied with self-drilling fixture and reinforcement shell. Auxiliary complements: omega transversal seal system in steel or extruded aluminium shell, longitudinal and transversal EPDM seals, roller and gauges for EPDM seal assembly, start pins.

This product is manufactured in: Steel

Solutions

• Wall sandwich panel »
