GALATEA 1100 PUR

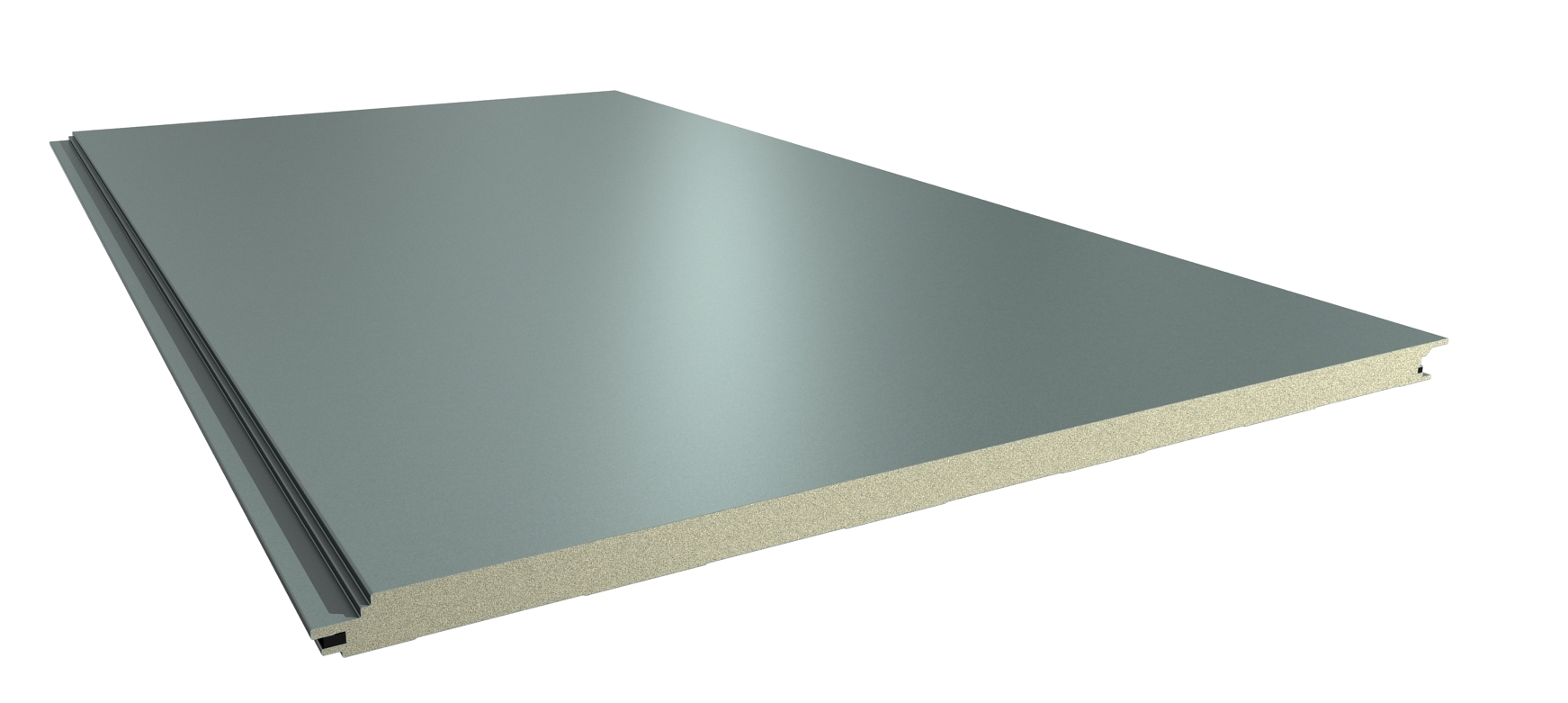

Europerfil GALATEA 1100 flat facade sandwich panel. CE marking (EN 14509). Fire reaction Euroclase B-s2,d0. Tongue and groove sealed system with hidden fixture. Thicknesses from 40 to 70 mm, width 1100 mm; comprising exterior and interior shell in galvanised pre-lacquered steel with thicknesses of 0,7mm/0.5mm (EN 10169) in standard Europerfil colours and coatings; rigid PUR (polyurethane CFC-free) foam core. Horizontal or vertical assembly. The panel is supplied with self-drilling fixture and reinforcement shell. Auxiliary complements: omega transversal seal system in steel or extruded aluminium shell, longitudinal and transversal EPDM seals, roller and gauges for EPDM seal assembly, start pins.
This product is manufactured in: Steel ,
